White Polyester Fiber Washable Bag Air Filter For Cement Plant

Product Categories
Sichuan Huajie Purification Equipment Co., Ltd.
Contact Now

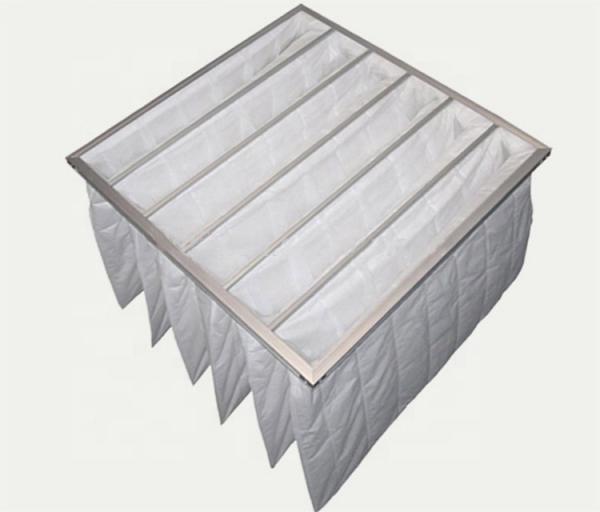

White Polyester Fiber Washable Bag Air Filter For Cement Plant

  • 1
  • 2
  • 3

Place of Origin : Sichuan, China

Brand Name : TRAIRF

Packaging Details : 1.Carton Package
2.Wooden Case
3. Customization

Supply Ability : 10000 Unit/Units per Month

MOQ : 50 units

Price : $12.00/units 50-99 units

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 2-30days

Application : AHU ,Cenment Plant,HVAC System

Efficiency : 60-95%

Construction : Bag Filter

Type : BAG FILTER, POCKET FILTER

Frame : Alluminum Alloy

Material : Polyester ,Synthetic Fiber

Initial Pressure : 50Pa

Working Temperature & Humidity : 80℃, 80%

Port : Shenzhen,Shanghai

Contact Now

Washable Polyester Air Bag Filter For Cement Plant

Description

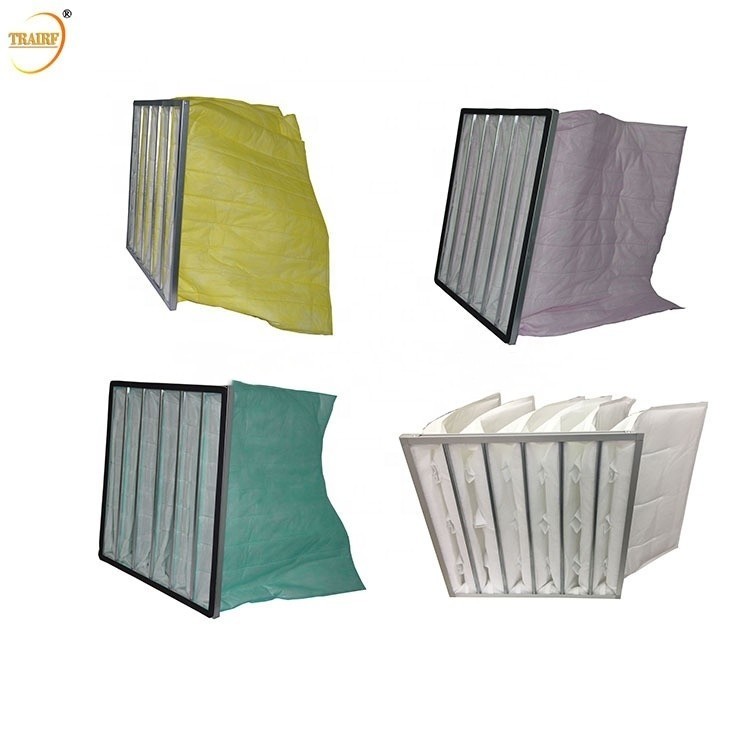

1.Style

Bag filter, Pocket filter

2.Feature

Large dust collection, low resistance, large air flow,

long service life

3.Material

Polyester fiber; Non-woven fabric; Activated carbon fiber

4.Size

Customization is available

5.Color

White , Orange ,Green , Pink,

Yellow , Black

6.Frame

Galvanized, Aluminum alloy,

Plastic box, Stainless steel

7.Application

Air conditioning system , Ventilation system ,

Electronic, Biological pharmaceutical industry etc.

8.Efficiency

35%-95%,G3,G4,F5-F9

9.Efficiency

Trapping 40-60%≥5.0µm particles,60-95%≥1.0µm particles

10.Packing

Cartons

11.Weight

Based on size&material,thickness

12.certification

ISO9001,CE certificate

Specifications

The primary bag filter is suitable for pre-filtration for air conditioner system, and widely used in Pharmacy factory, hospital, electronic factory, food factory, etc. to extened HEPA Filter service life and reduce filtration cost.

Class Size(mm)H*W*D Bags Filtration area Rated air flow Initial resistance Recommend final resistance
35%(G4) 287*592*550 2 1.86 1700 15 350
592*592*550 5 3.12 3400 20
592*592*600 6 3.78 3400 20
45%(F5) 287*592*550 3 2.12 1700 20 400
592*592*550 5 3.66 3400 30
592*592*600 6 4.46 3400 30
65%(F6) 287*592*550 3 2.12 1700 45 400
592*592*550 5 3.66 3400 80
592*592*600 6 4.40 3400 80
85%(F7) 287*592*550 3 2.80 1700 100 400
592*592*500 5 4.78 3400 125
592*592*600 6 5.78 3400 125
95%(F8) 287*592*550 3 2.80 1700 110 450
592*592*500 5 4.78 3400 130
592*592*600 6 5.78 3400 130

* Customizable Size

White Polyester Fiber Washable Bag Air Filter For Cement Plant

Advantage:
1.Low resistance, large air flow
2.Large dust holding capacity and long service life
3.Washable filter media, cost economical
4.Use the highest temperature, humidity:80℃,80%

Main Features:
1.Frame: stainless steel, aluminum alloy, galvanized plate
2.Filter media: Pre Filter Cotton
3.Type: bag air filter,pocket air filter
4.Pocket length Customized according to your requirements

White Polyester Fiber Washable Bag Air Filter For Cement Plant
