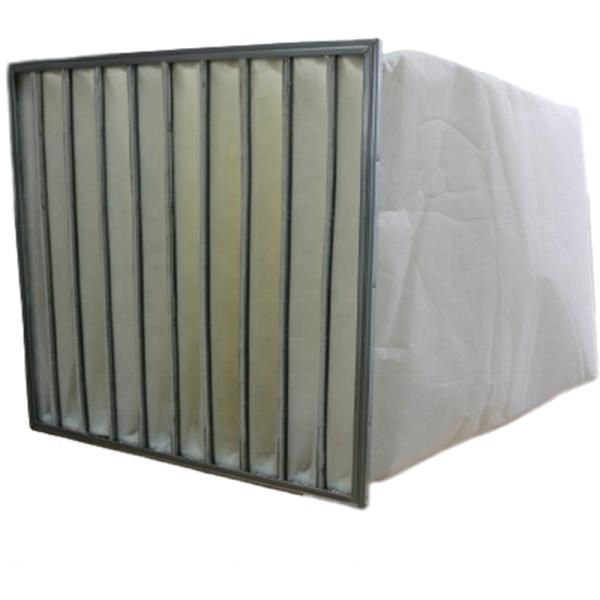

1 Micron Fiberglass Panel Air Conditioning Bag Filters OEM ODM

Name: 1 Micron Fiberglass Panel Air Conditioning Bag Filters OEM ODM
Brand: TRAIRF
Price: 10.00 USD

Quality 1 Micron Fiberglass Panel Air Conditioning Bag Filters OEM ODM wholesale

Place of Origin : Sichuan, China

Brand Name : TRAIRF

Packaging Details : 1.FCL Order Filters are packaged by 5 layers Carton Case
2. LCL Order Filters are packaged by wooden case

MOQ : 50 pieces

Price : $10.00/pieces 50-199 pieces

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 Pieces per 2-30days

Delivery Time : 2-30days

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Efficiency : 45-95%

Dimension(L*W*H) : 495*495*500mm *6Pokcets

Filter Material : Nonwoven Fabric , Melt-blown

Frame : Galvanized Steel; Aluminium Alloy

Color : White

Initial Pressure : 50Pa-65 Pa

Working Highest Temperature : 80℃

Humidity : 80%

Contact Now

Air Conditioning Bag Filter Fiberglass Air Filter For Air Cleaning Equipment

item	value
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Warranty of core components	Not Available
Condition	New
Efficiency	45-95%
Construction	Bag Filter
Porosity	1 Micron
Place of Origin	China
Province	Sichuan
Brand Name	TRAIRF
Dimension(LWH)	495495500mm *6Pokcets
Weight	1KG
Warranty	Unavailable
Type	Compact
Filter Material	Nonwoven Fabric , Melt-blown
Frame	Galvanized Steel; Aluminium Alloy
Color	White
Initial Pressure	50Pa-65 Pa
Working Highest Temperature	80℃
Humidity	80%

Product Parameters

Middle Efficiency Synthetic Fiber Pocket parameters have model, outside dimensions, rated air flow, initial resistance and efficiency and so on. The size of the product can be determined according to customer requirements. There are standard size and non-standard size, in order to meet a certain number of requirements on the customer can request customization.

Model	Outside Dimensions(mm)	Rated air flow(m³/h)	Initial resistance(Pa)	Efficiency	Model of filter media	Pockets
TR-ZXD-P1	495295500mm 20”×12” ×20”	1000m³/h	50-130Pa	45% F5 65% F6 85% F7 95% F8 99% F9 colorimetric	F5 White F6 Green F7 Pink F8 Yellow F9 Yellow	5
TR-ZXD-P2	495295500mm 20”×12” ×20”	1800m³/h				5
TR-ZXD-P3	595295500mm 24”×12” ×20”	1300m³/h				6
TR-ZXD-P4	595595500mm 24”×24” ×20”	2200m³/h				6
TR-ZXD-P5	495295500mm 20”×12” ×24”	2600m³/h				8
TR-ZXD-P6	495495500mm 20”×20” ×24”	1200m³/h				5
TR-ZXD-P7	495295500mm 20”×12” ×24”	2200m³/h				5
TR-ZXD-P8	595295500mm 24”×12” ×24”	1600m³/h				6
TR-ZXD-P9	595495500mm 24”×20” ×24”	2700m³/h				6
TR-ZXD-P10	595595500mm 24”×24” ×24”	3200m³/h				8

* Customizable Size

Application

Air-conditioning filter system intermediate filtration, precision clean Room Clear Room of secondary filtration, high efficiency filter from the filter;

Local prefiltering efficient filter; Large air compressor filter.

Offices, meeting rooms, hospitals, shopping malls, airports and other large-scale civil building ventilation and air conditioning system.

Ordinary industrial workshop or clean room filter's central air conditioning and ventilation system.

Clean air return system.

Electronic technology, medicine and health care, biological products, food and beverage, electrical and mechanical engineering equipment, precision instrument, metallurgy, chemical industry, coating, air conditioning, printing, environmental protection, etc.
